| Model | B-S3590P-20 | B-S3590P-40 | B-S3590P-60 | B-S3590P-80 |
| Input voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Wattage | 20W | 40w | 60W | 80W |
| Beam angle | 120° | 120° | 120° | 120° |
| LED chip | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
| Luminous Efficiency | 100 lm /W | 100 lm /W | 100 lm /W | 100 lm /W |
| CRI | >80 | >80 | >80 | >80 |
| 運転手 | ce, TUV, SAA | ce, TUV, SAA | ce, TUV, SAA | ce, TUV, SAA |
| 材料 | Aluminum +PC | Aluminum +PC | Aluminum +PC | Aluminum +PC |
| Cut hole | L605*W55*H60mm | L1200*W55*H60mm | L1795*W55*H60mm | L2390*W55*H60mm |
| サイズ | L620*W80*H60mm | L1215*W80*H60mm | L1810*W80*H60mm | L2405*W80*H60mm |

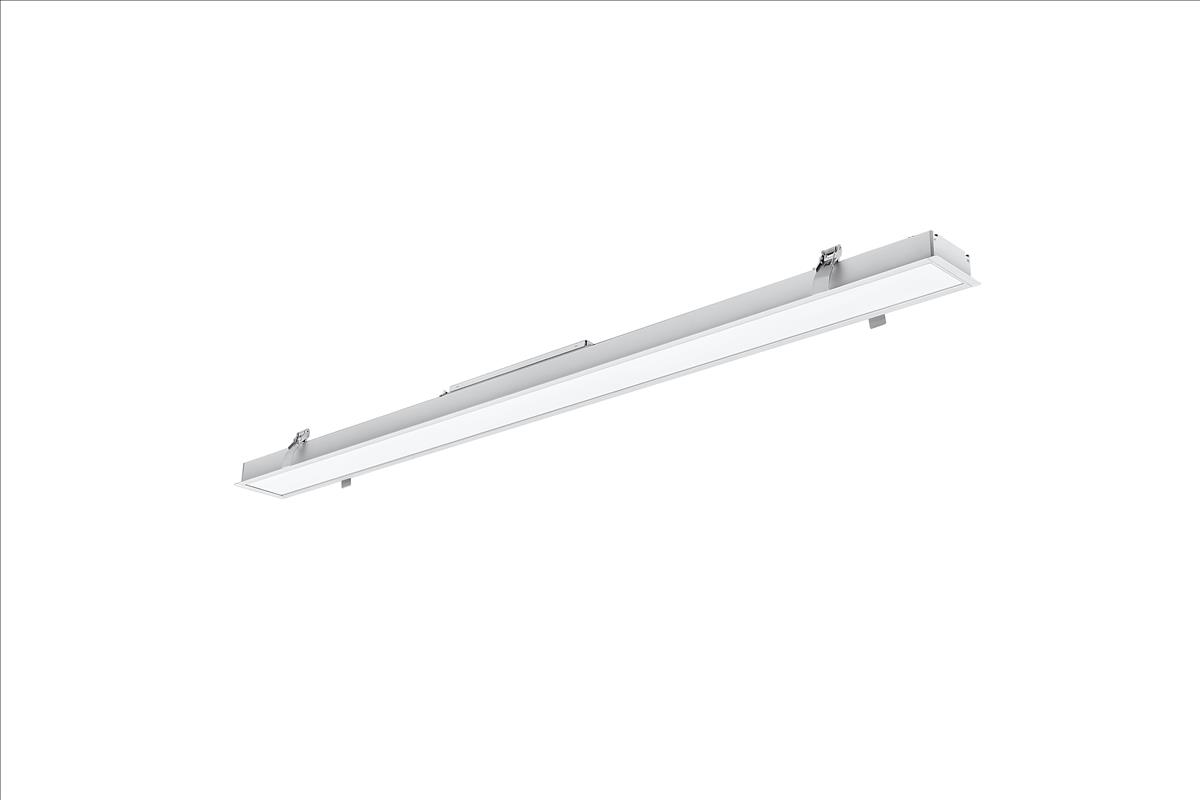

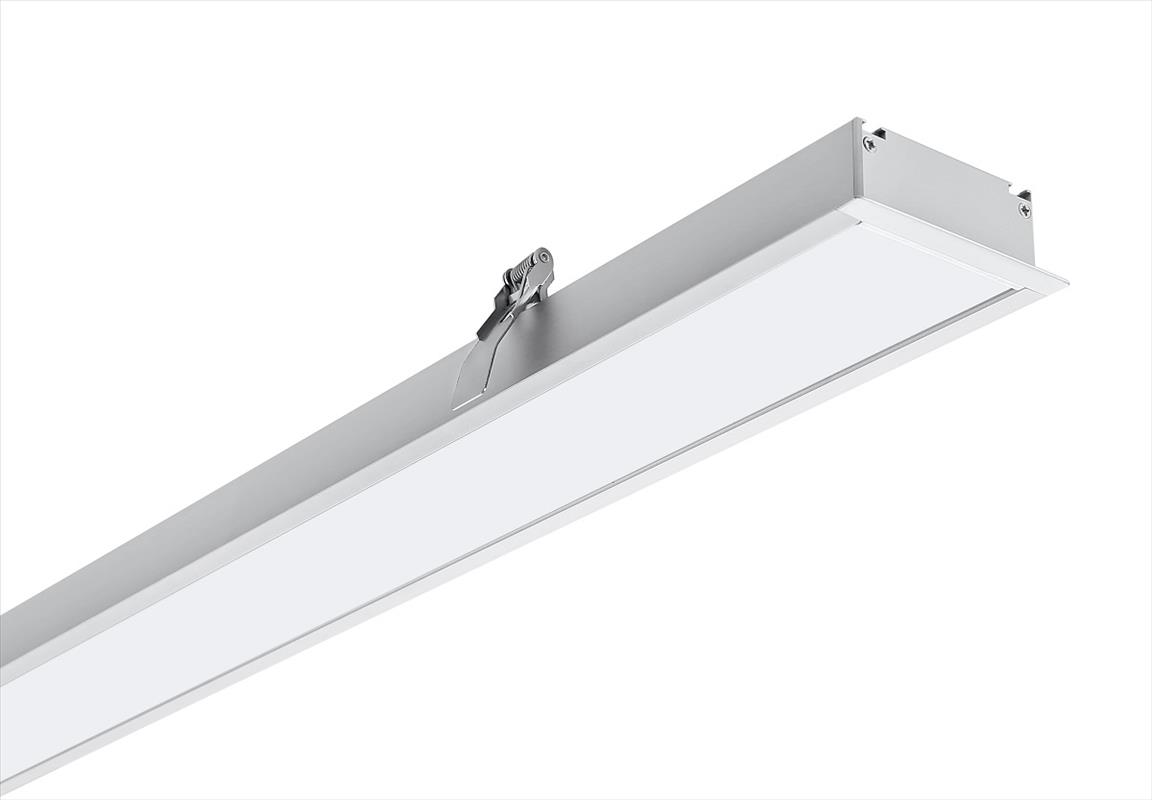

Recessed LED Linear Light
力:20W/40W/60W/80W
Input voltage:AC200-240V
Lenght:600/1200/1800/2400んん
サイズ: 広い:90んん,Height:35んん
CCT:3000/4000K/5000K/6000K
CRI:>80
Light efficiency: 100lm/w
保証: 5 年
Can be linkable connection(seamless connection)

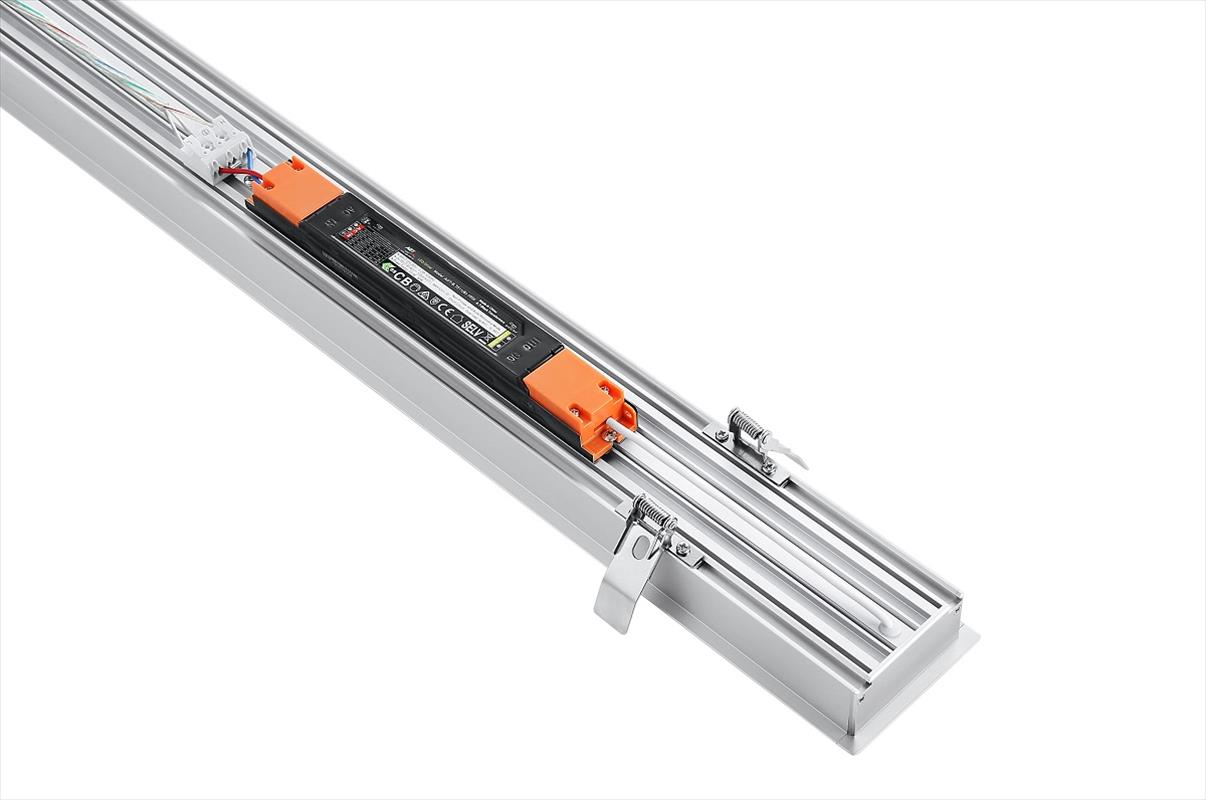

Power supply: Built-in efficient and safe flicker-free driver
Optional features: 0-10V dimming, DALI dimming, 色 &
Brightness adjustable, Emergency lighting.
