| モデル | B-S2285P-20 | B-S2285P-40 | B-S2285P-60 | B-S2285P-80 |
| Input voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Wattage | 20W | 40W | 60W | 80W |
| Beam angle | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° |
| LED chip | SMDの 2835 | SMDの 2835 | SMDの 2835 | SMDの 2835 |
| Luminous Efficiency | 95 lm /W | 95 lm /W | 95 lm /W | 95 lm /W |
| CRI | >80 | >80 | >80 | >80 |
| 運転手 | ce, TUV, SAA | ce, TUV, SAA | ce, TUV, SAA | ce, TUV, SAA |
| 材料 | Aluminum +PC | Aluminum +PC | Aluminum +PC | Aluminum +PC |
| サイズ | L600×W22×H85 | L1176×W22×H85 | L1750×W22×H85 | L2325×W22×H85 |

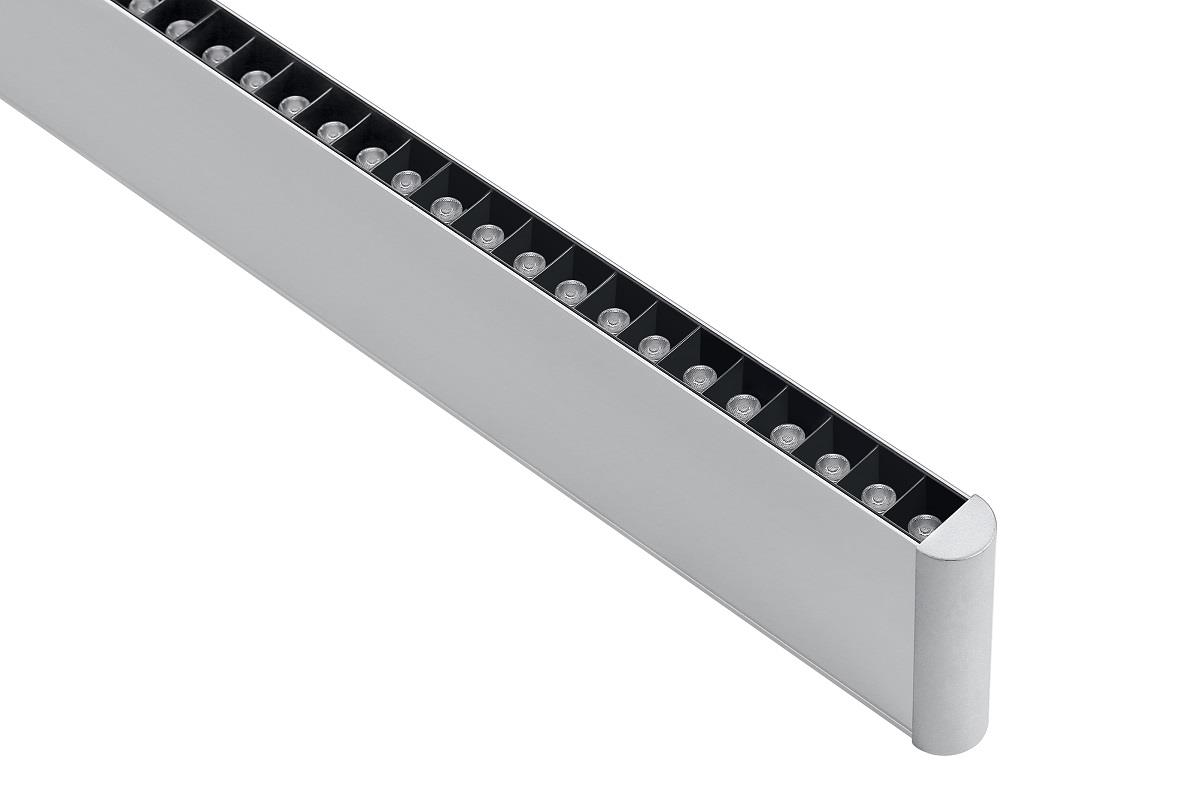

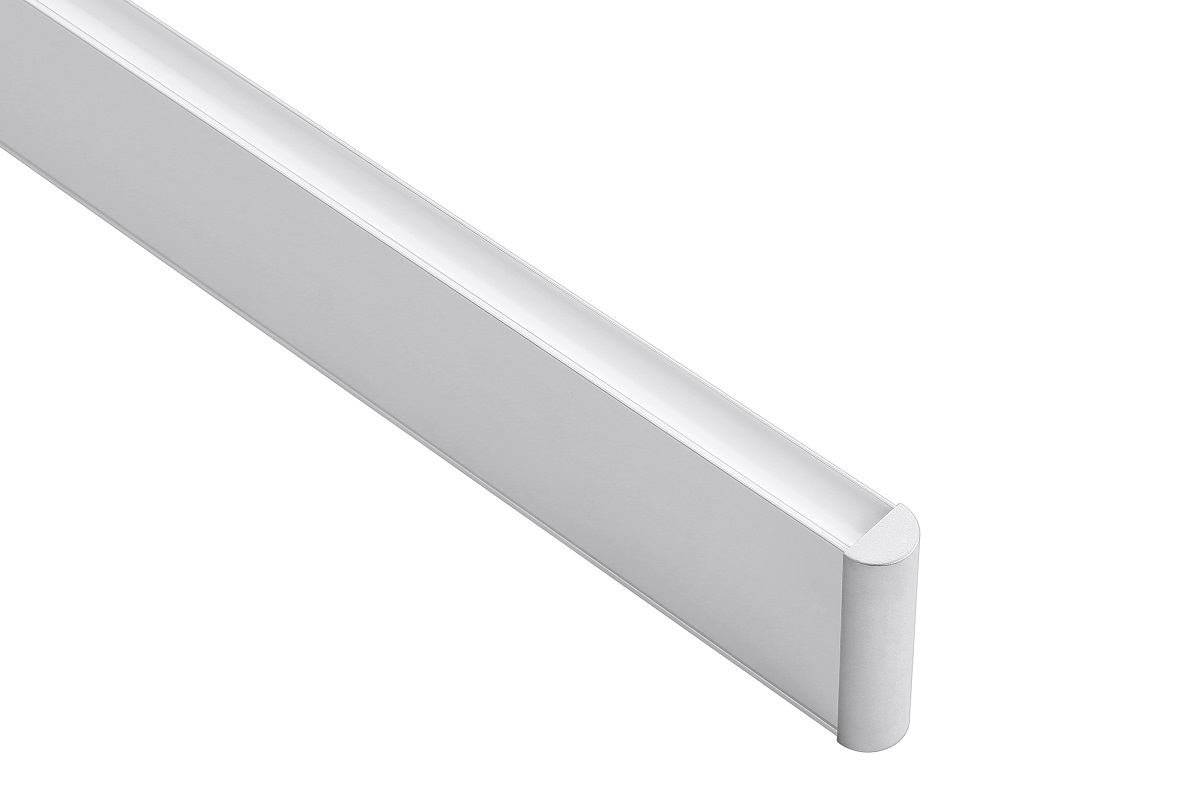

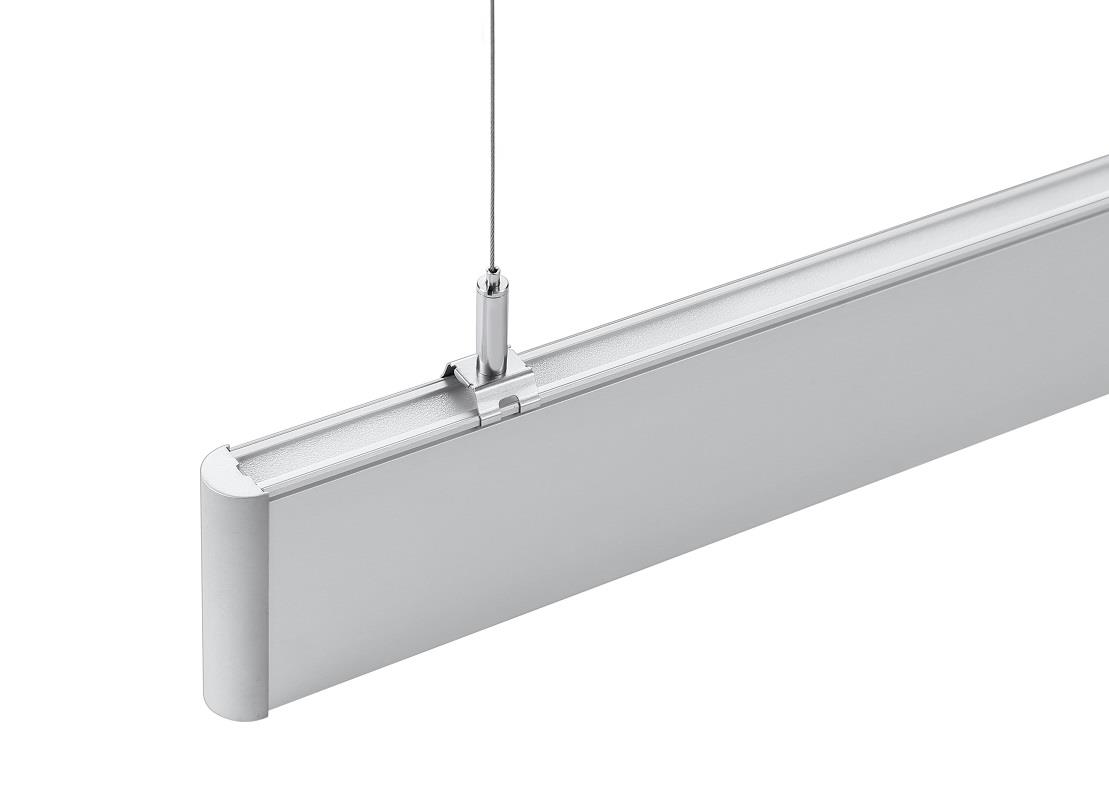

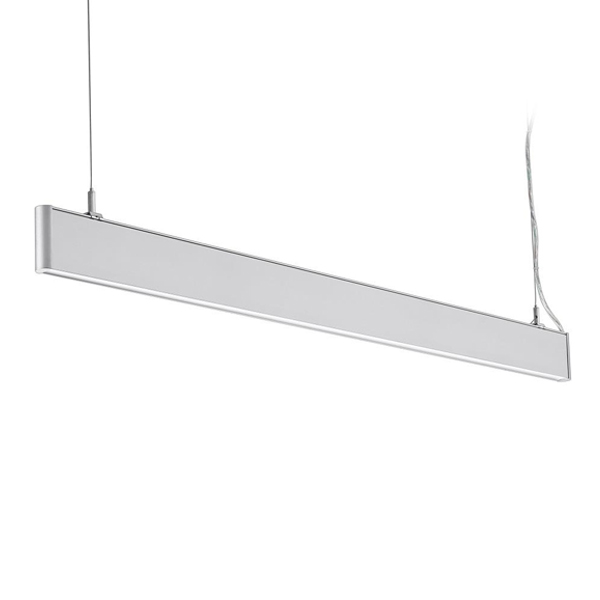

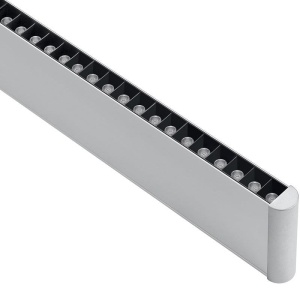

UP & DOWN LED Linear Light
Two sides for lighting : UP & Down
Beam Angle:120° / 12°, 34°, 48°
Combined multifunction(UGR<19, with reflector )
力:20W/40W/60W/80W
Input voltage:AC200-240V
Lenght:600/1200/1800/2400mm
サイズ: wide:735mm,Height:70mm
CCT:3000/4000K/5000K/6000K
CRI:>80
Light efficiency: 95lm/w
保証: 5 years
電源: Built-in efficient and safe flicker-free driver
Optional features: 0-10V dimming, DALI dimming, 色 &
Brightness adjustable, Emergency lighting.
